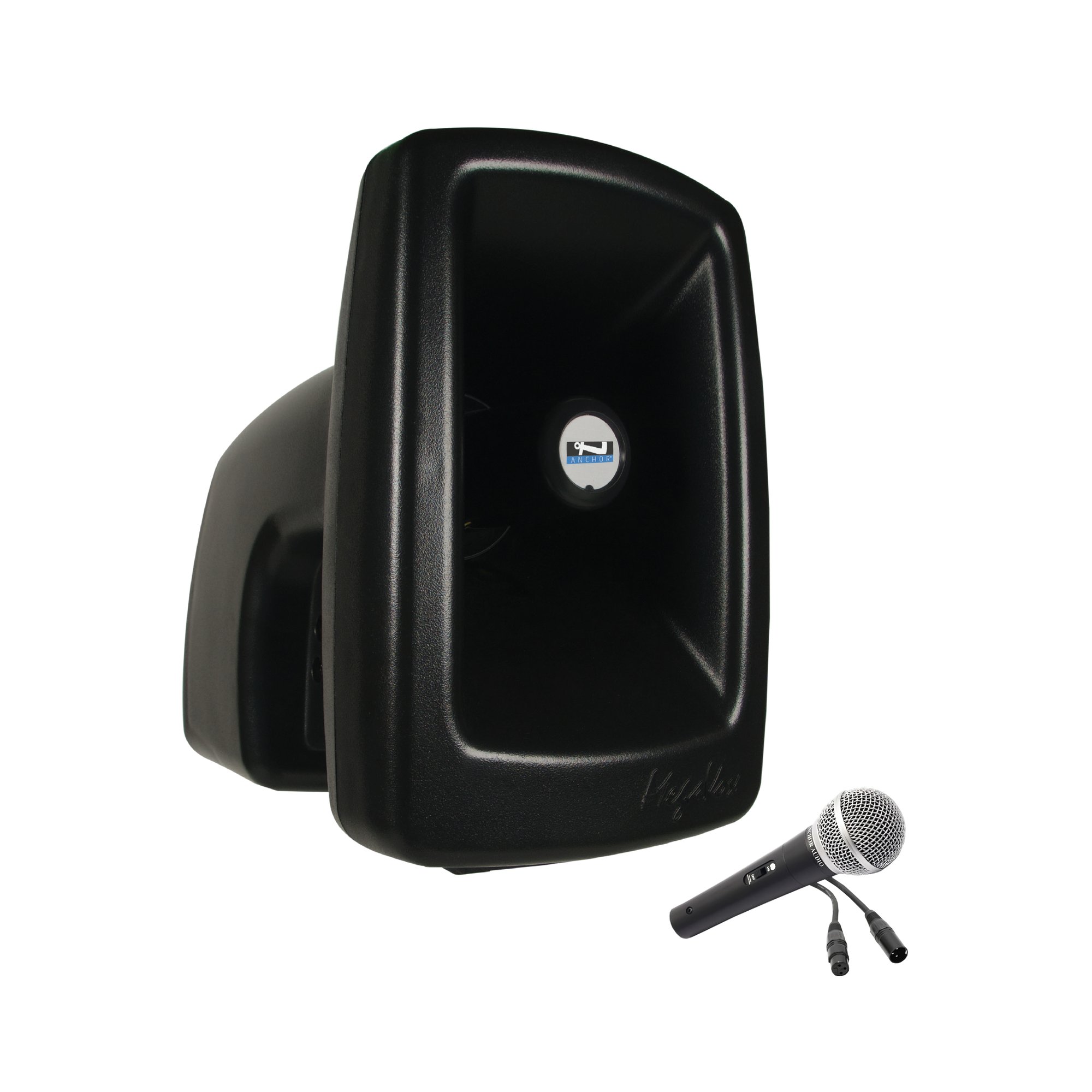

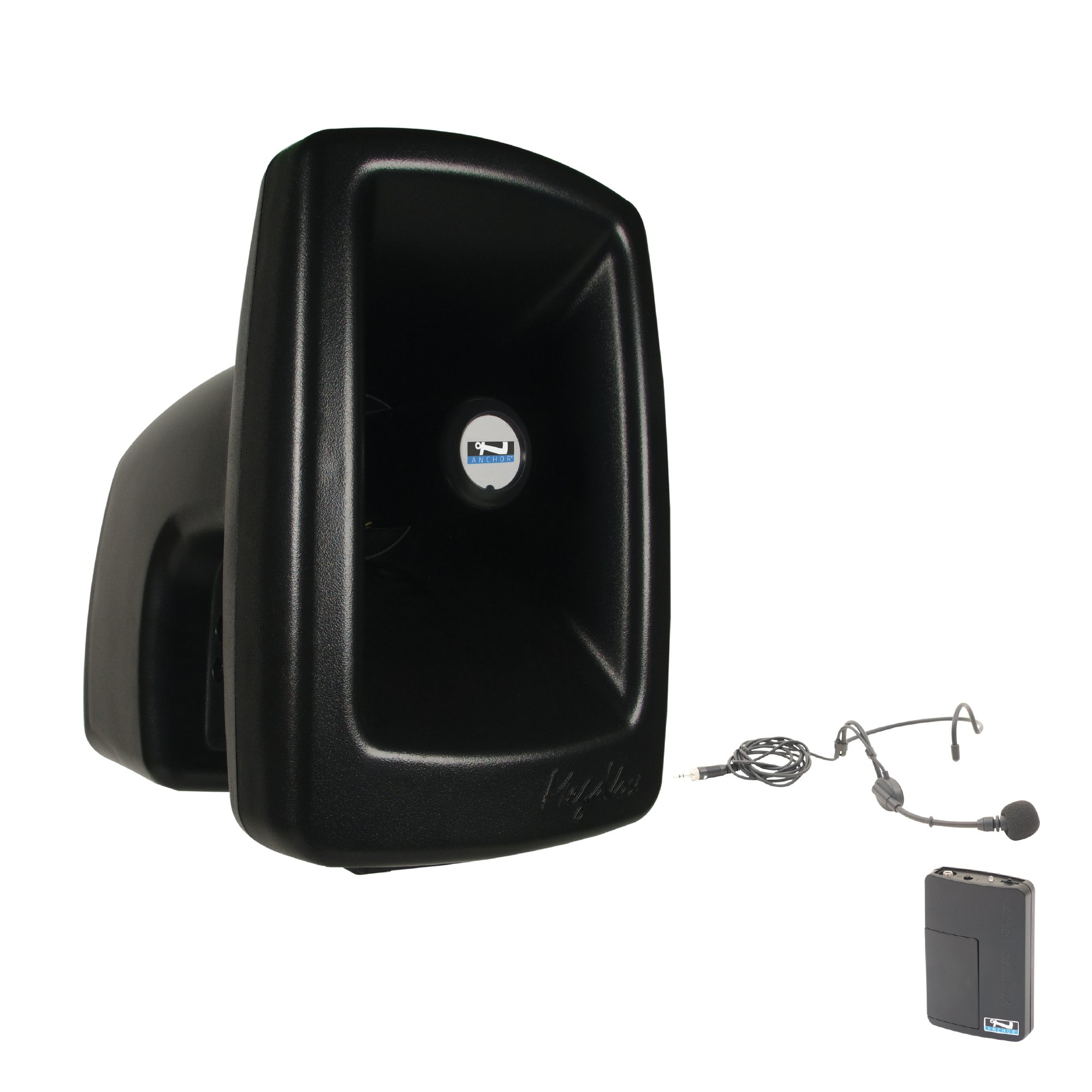

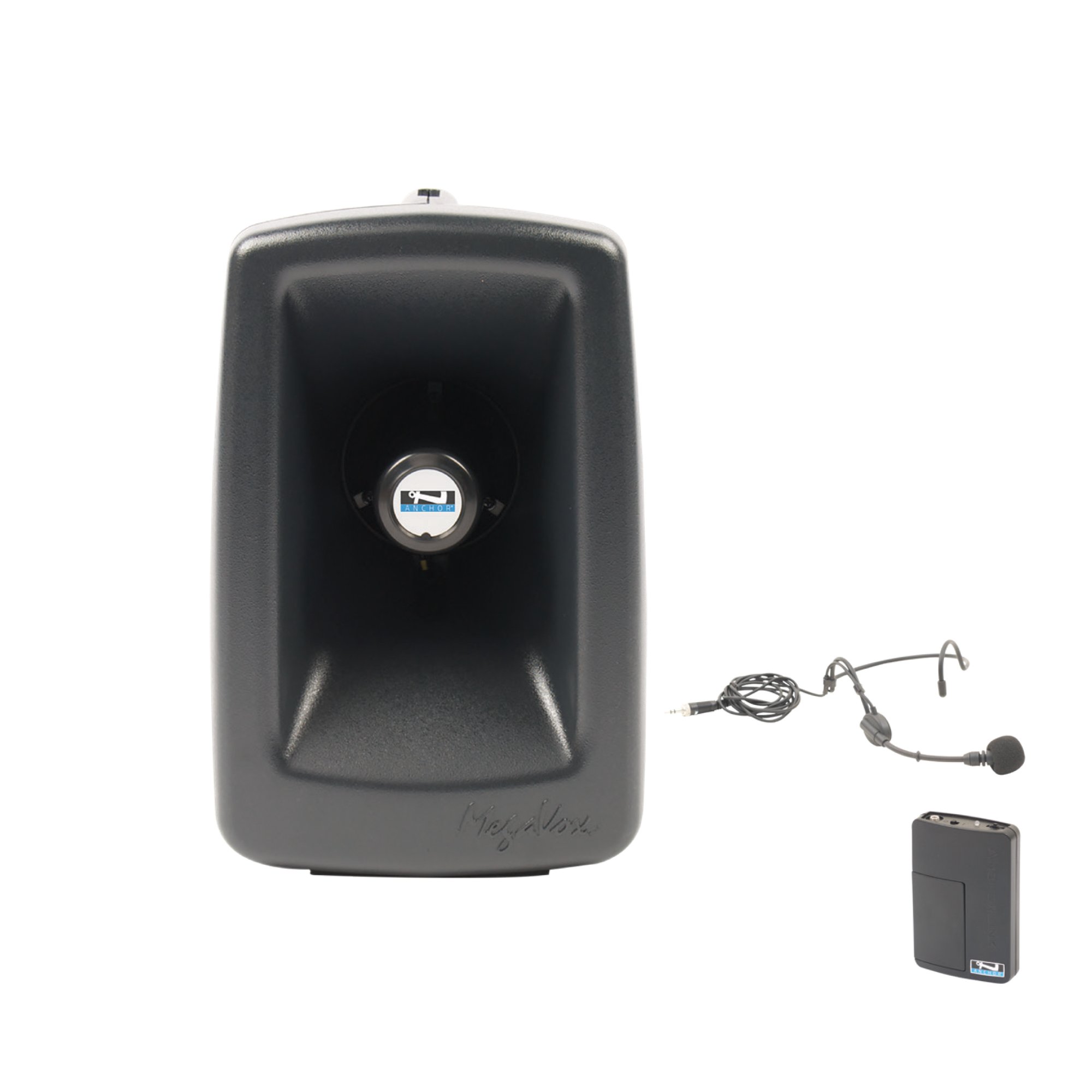

A quick look at the Anchor Audio Megavox speaker.

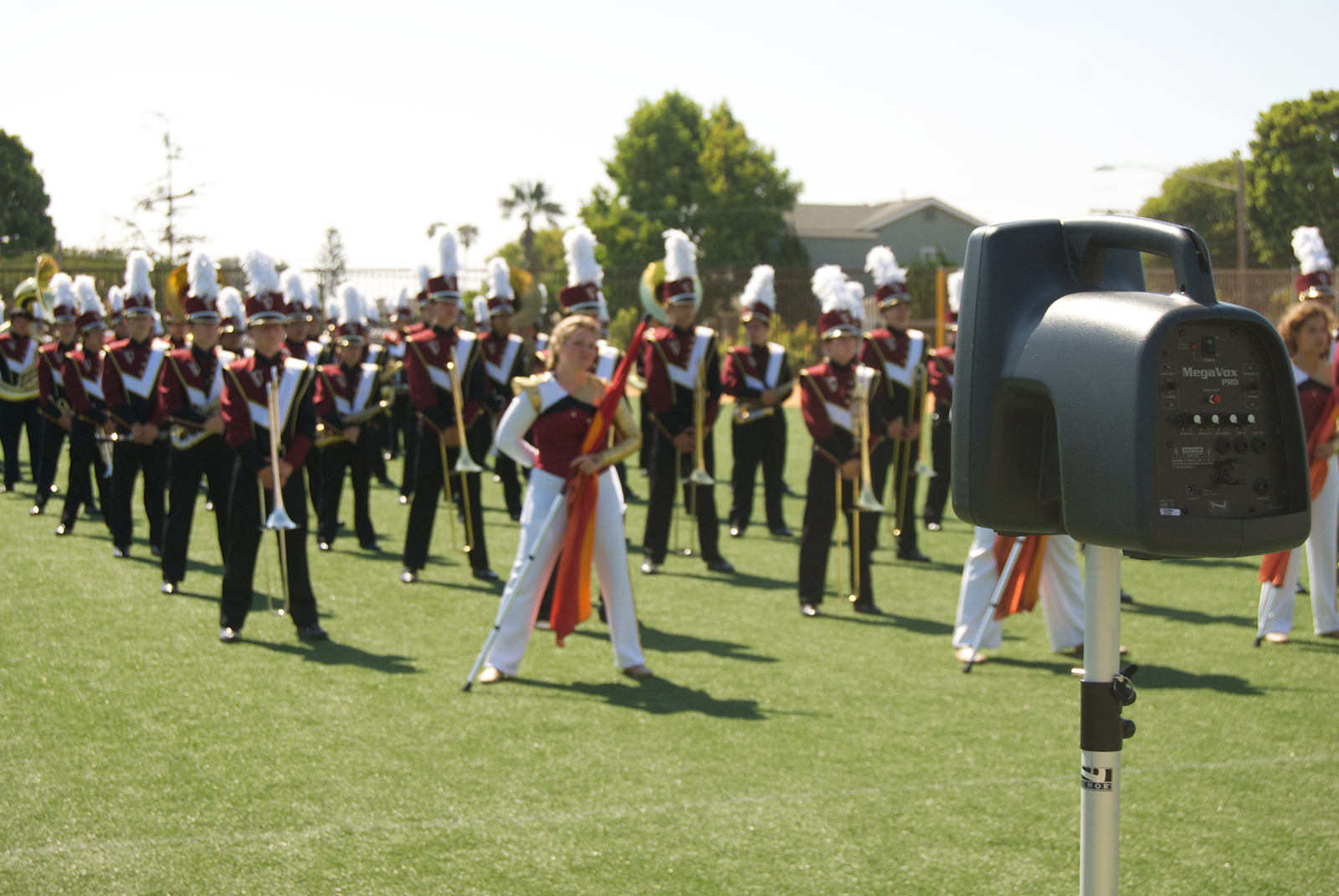

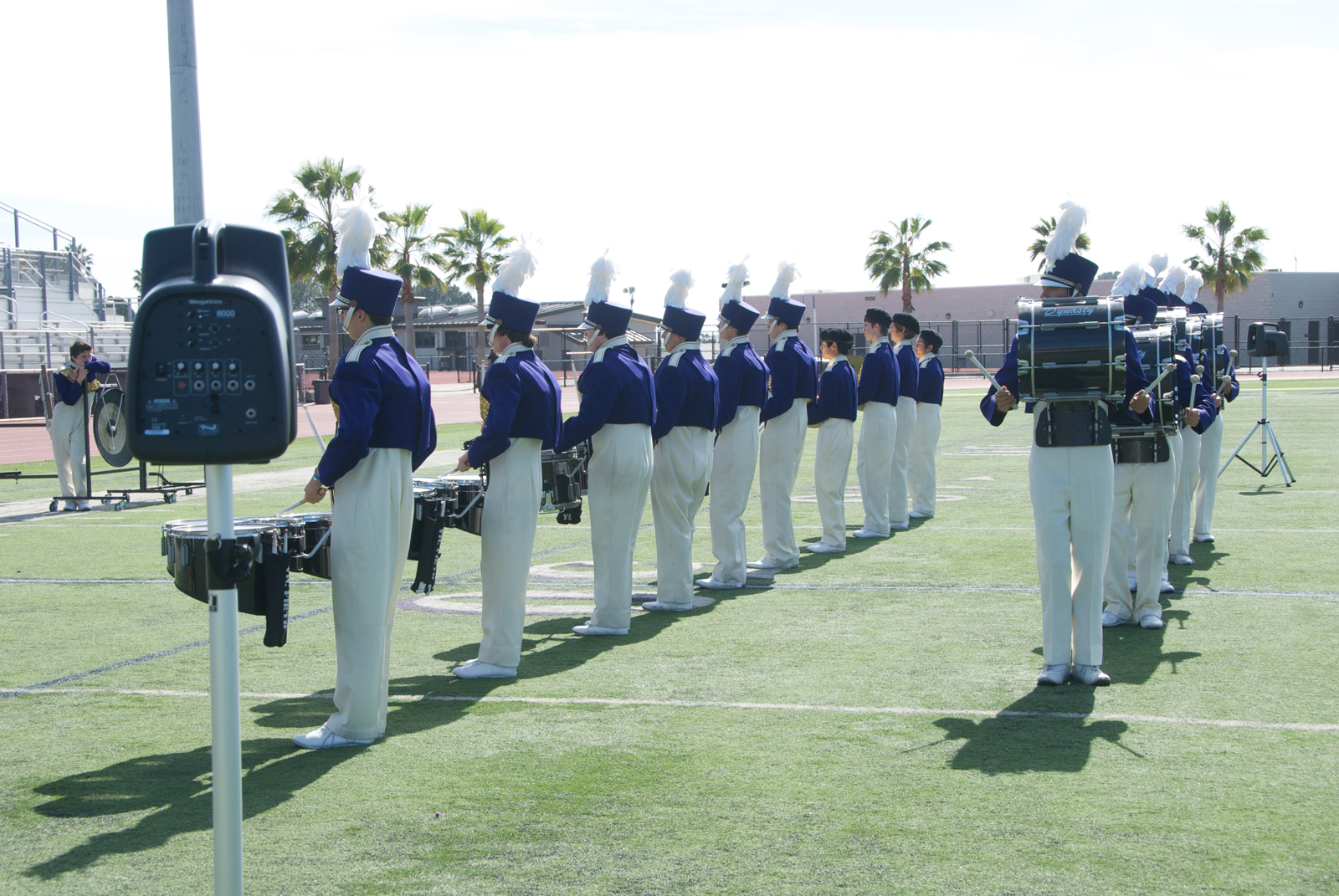

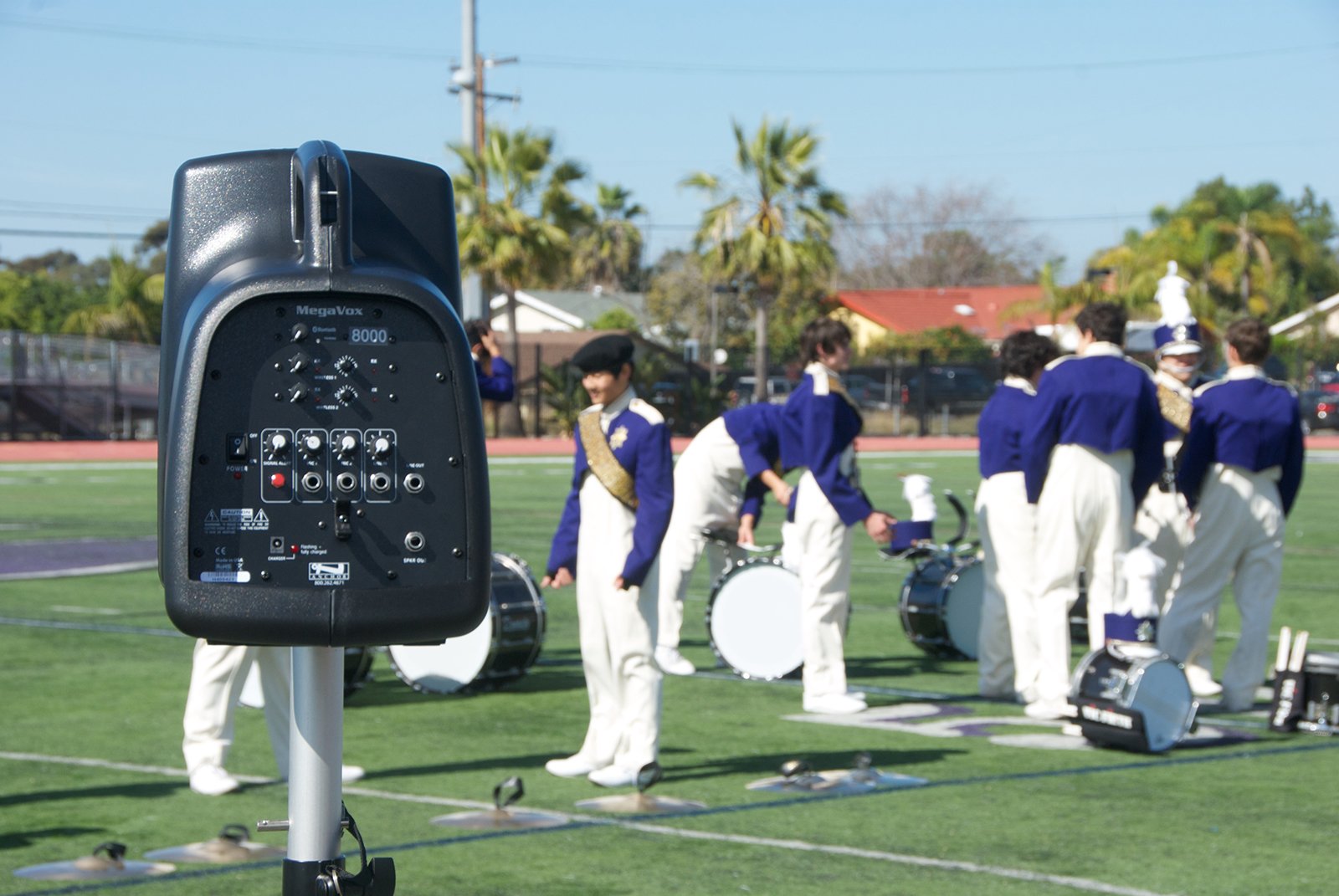

Peter Manzi, Carlsbad High School's Band Director, talks about the Metronome making a difference with his band's performance.
How to connect a metronome to your Megavox:
All Megavox systems include:
✅ Rechargeable lithium-ion batteries with 7+ hours of playtime and superior power management for all-day play
✅ Long-range Bluetooth so you can stream directly to your speaker
✅ Two universal wired mic inputs
✅ Standard Line In and Line Out ports
✅ Rugged, lightweight case designed to keep your electronics safe while you move your system around
✅ Unique built-in handle to easily lift the speaker
✅ Built-in speaker stand socket
✅ Anchor Audio 6-4-2 Warranty
Each Megavox speaker:
- Weight: 13lbs

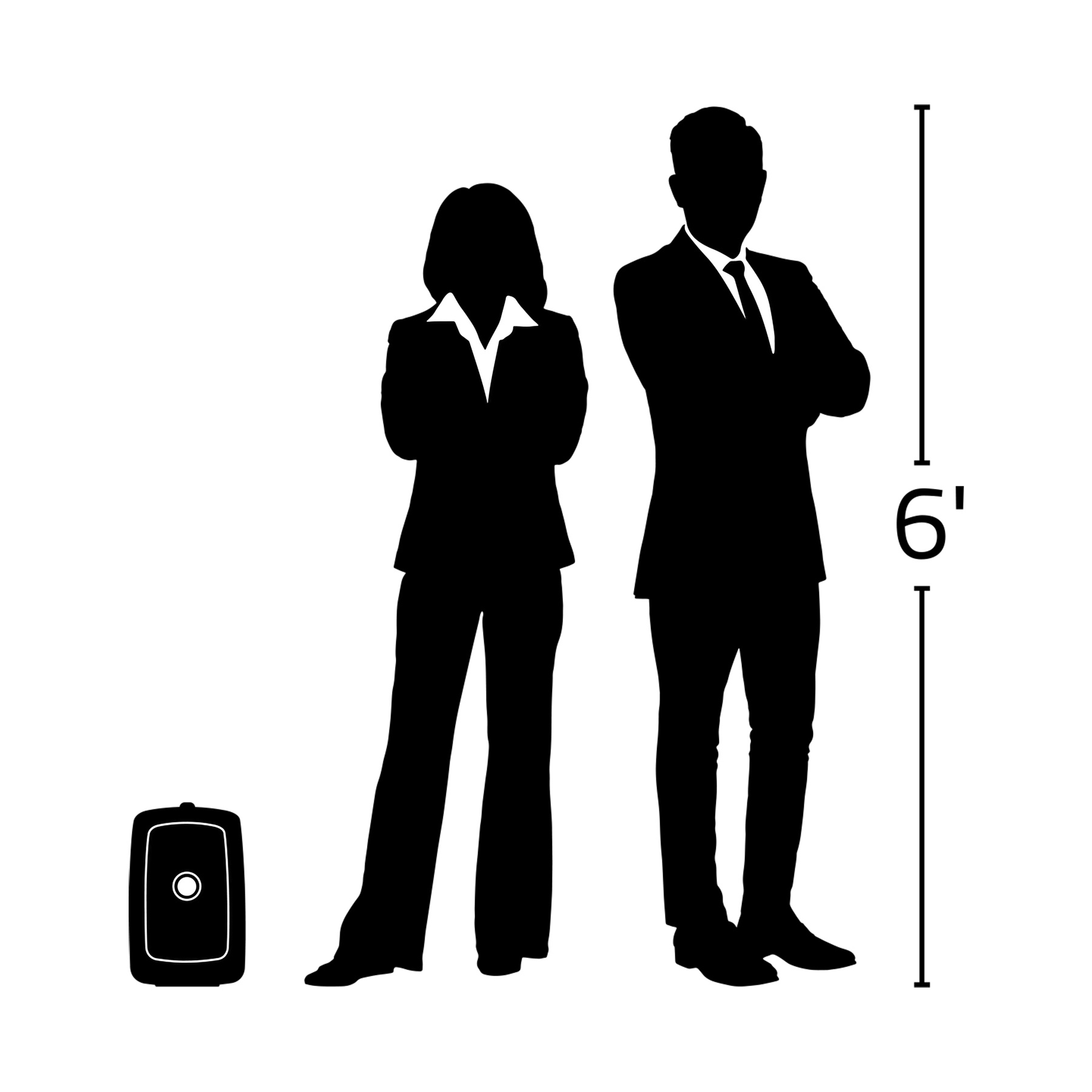

- Dimensions: (Height x Width x Depth)
14" x 8.5" x 13"
(height is with telescoping handle down)
- Coverage:
* area: approximately 75' x 150'
* crowd size: approximately 1000
Megavox has a high-efficiency re-entrant horn driver
Technical Specifications
- Rated Power Output: 20 watts
- Max SPL @ Rated Power: 119 dB @ 1 meter
- Frequency Response: 400 Hz ~ 10 kHz ± 3dB
- AC Power Reqs:
100~240 VAC, 50/60 Hz, 2A
- Charger/Power Inlet: PC-2
- Battery
One 12V Lithium Iron Phosphate (LiFePo4) rechargeable battery, 5 Ah
Full recharge: ~ 5 hours
- AnchorLink Wireless Frequency: 1920~1930 MHz USA/CAN
1880~1900 MHz Europe
- AnchorLink Wireless Range: 300’+ line of sight
- AnchorFlex Frequency Range:
902~928 MHz USA/CAN
606~614MHz Europe
- AnchorFlex Wireless Range: 300’+ line of sight
- Microphone Inputs:
* Lo-Z, balanced, XLR & 1/4”
* 34 V DC condenser mic (phantom) power
* Hi-Z (10 kΩ), unbalanced, 1/4” phone
- Line Inputs:
* One unbalanced 1/4”
* One 3.5 mm stereo
- Line Output (post fader): Isolated, 600Ω
One 1/4” phone
- Speaker Out: 4-pole Neutrik Speakon® jack
Looking for the Owner's Manual?
You might find these videos helpful!
How to connect a metronome to your Megavox:
Anchor Audio's 6-4-2 Warranty covers;
- All speaker systems for 6 years
- Lithium-ion batteries for 4 years, and
- Microphones and peripheral products for 2 years.
If your warranty expires, we will not leave you high and dry. We will support you and offer an upgrade path, if you're looking to get new gear.
