What's Included

1 Liberty 3 Hub professional sound system
1 Liberty 3 Connect professional sound system
1 Wireless professional-grade handheld microphone
Anchor Audio 6-4-2 Warranty
Rechargeable lithium-ion batteries with 7+ hours of playtime and superior power management
Long-range Bluetooth so you can stream directly to your speaker
USB port to charge your phone
Two universal wired mic inputs
AnchorLink 3 technology to link up to 4 wireless microphones
AnchorFlex technology to connect multiple Anchor Audio
systems cable-free

All Liberty 3 systems include:

✅ Rechargeable lithium-ion batteries with 7+ hours of playtime and superior power management for all-day play

✅ Long-range Bluetooth so you can stream directly to your speaker

✅ USB port to charge your phone

✅ Two universal wired mic inputs

✅ Standard Line In and Line Out ports

✅ Rugged, weatherproof case designed to keep your electronic safe and still allow you to plug your components in when the weather isn't friendly

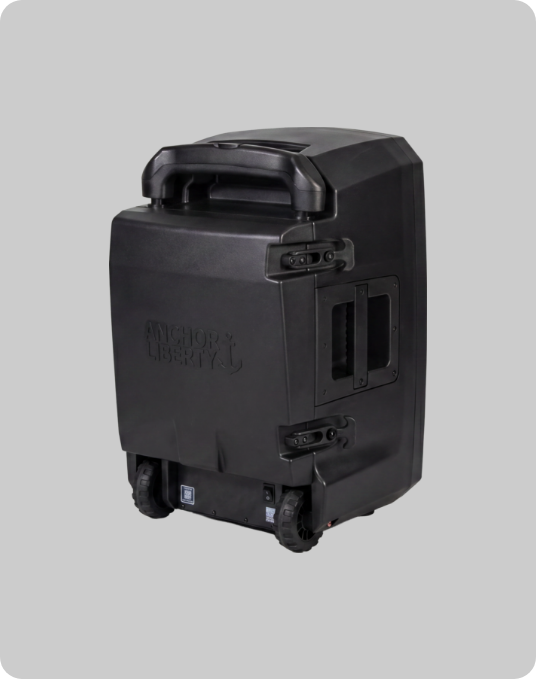

✅ Wheels designed to go off-pavement

✅ Flush, durable handles to easily lift the speaker

✅ Telescoping handle for easy transportation

✅ Built-in speaker stand socket

✅ Anchor Audio 6-4-2 Warranty

Each Liberty 3 speaker:

Weight: 45.6 lbs
Dimensions: (Height x Width x Depth)
24" x 16" x 16"
(height is with telescoping handle down)
Coverage:
* area: approximately 90' x 175'
* crowd size: approximately 1500

Liberty 3 speaker components include:

One 10" Woofer
One 8" Ceramic Compression Driver

Technical Specifications

Rated Power Output: 125 watts
Max SPL @ Rated Power: 123 dB @ 1 meter
Frequency Response: 20 Hz ~ 20 kHz ± 3dB
AC Power Reqs:
100~240 VAC, 50/60 Hz, 2A
Charger/Power Inlet: PC-2
Battery
Two 12V Lithium Iron Phosphate (LiFePo4) rechargeable batteries, 10 Ah each
Full recharge: ~ 7 hours
AnchorLink Wireless Frequency: 1920~1930 MHz USA/CAN
1880~1900 MHz Europe
AnchorLink Wireless Range: 300’+ line of sight
AnchorFlex Frequency Range:
902~928 MHz USA/CAN
606~614MHz Europe
AnchorFlex Wireless Range: 300’+ line of sight
Microphone Inputs:
* Lo-Z, balanced, XLR & 1/4”
* 34 V DC condenser mic (phantom) power
* Hi-Z (10 kΩ), unbalanced, 1/4” phone
Line Inputs:
* One unbalanced 1/4”
* One 3.5 mm stereo
Line Output (post fader): Isolated, 600Ω
One 1/4” phone
Speaker Out: 4-pole Neutrik Speakon® jack

Anchor Audio's 6-4-2 Warranty covers;

All speaker systems for 6 years
Lithium-ion batteries for 4 years, and
Microphones and peripheral products for 2 years.

If your warranty expires, we will not leave you high and dry. We will support you and offer an upgrade path, if you're looking to get new gear.
