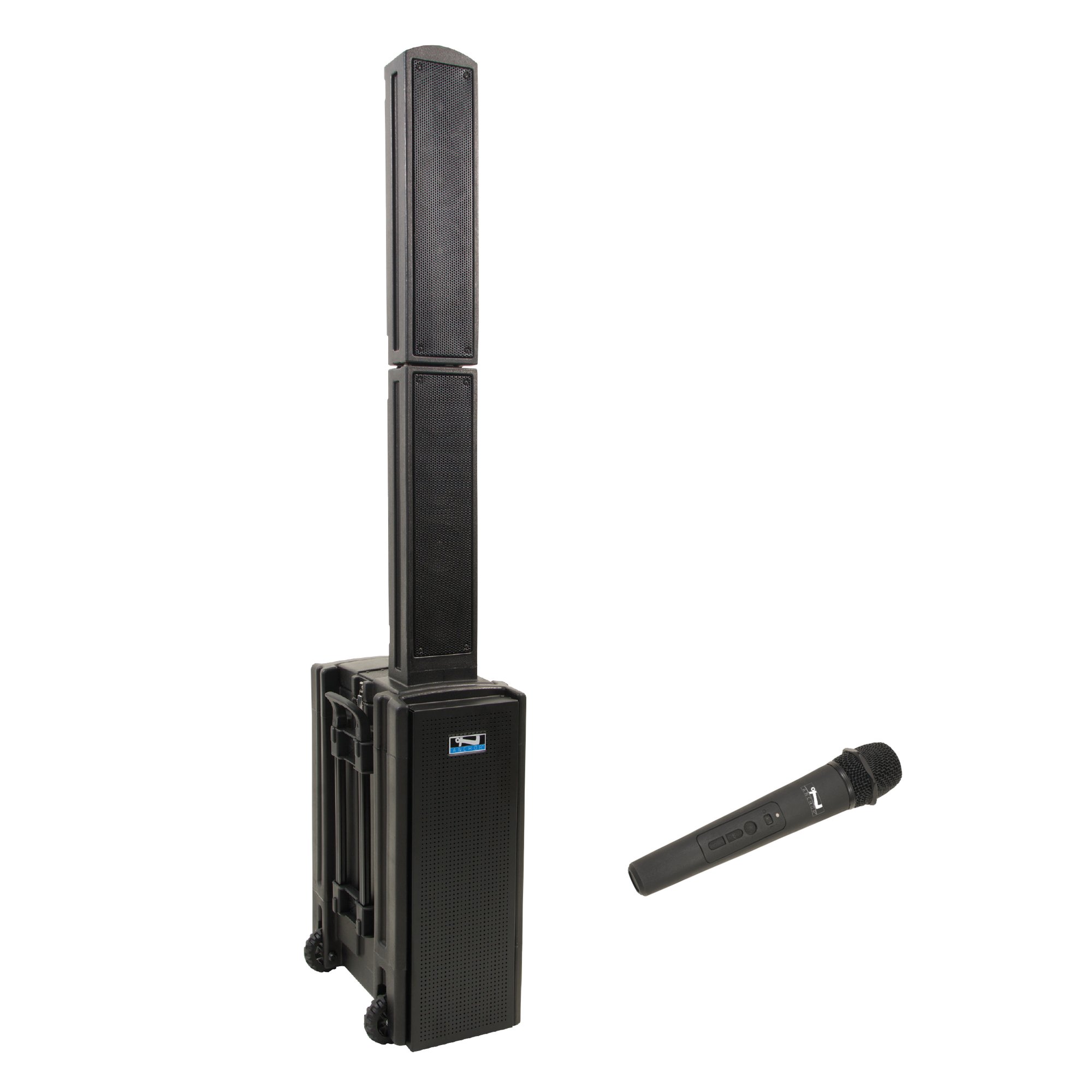

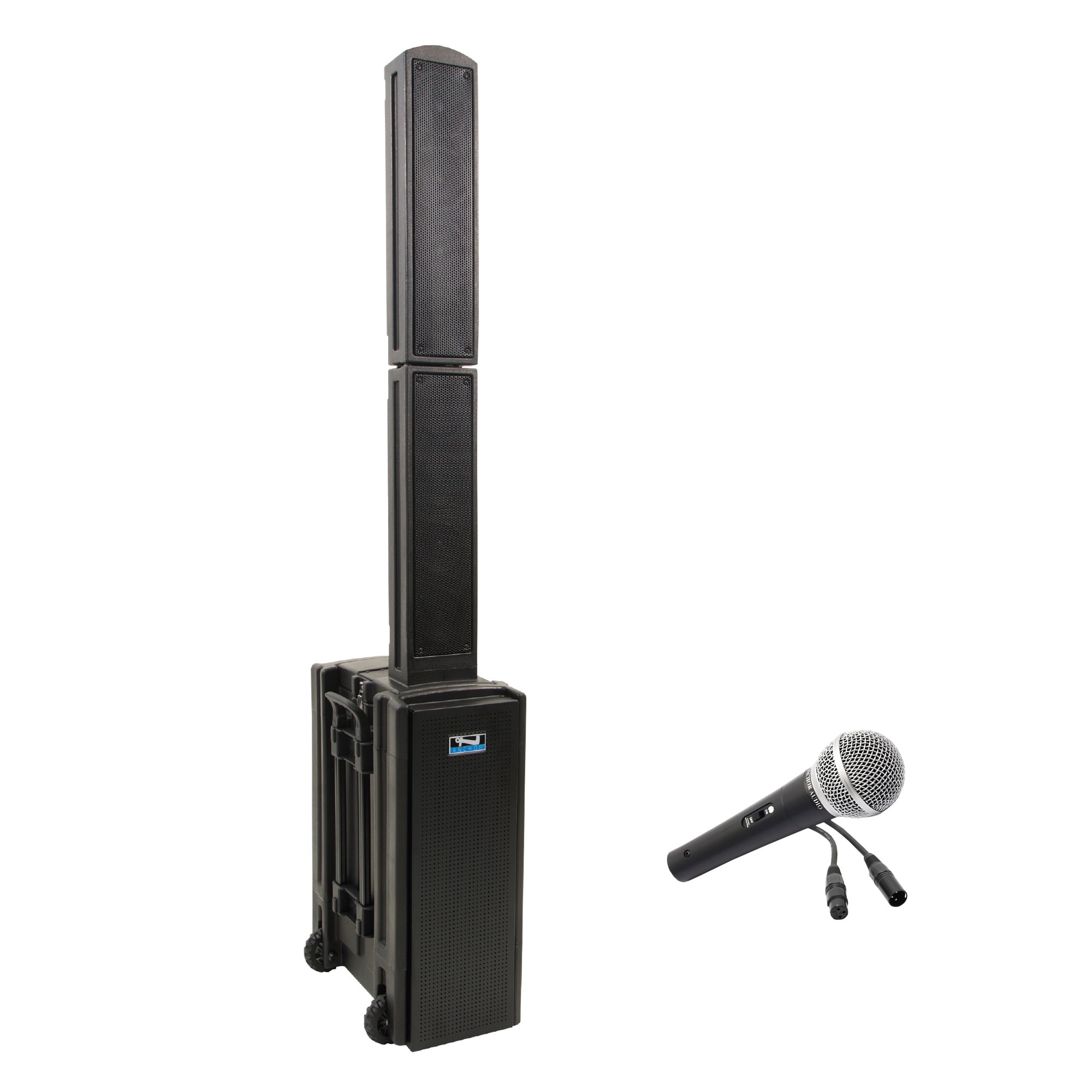

Beacon: Big Sound, Small Footprint

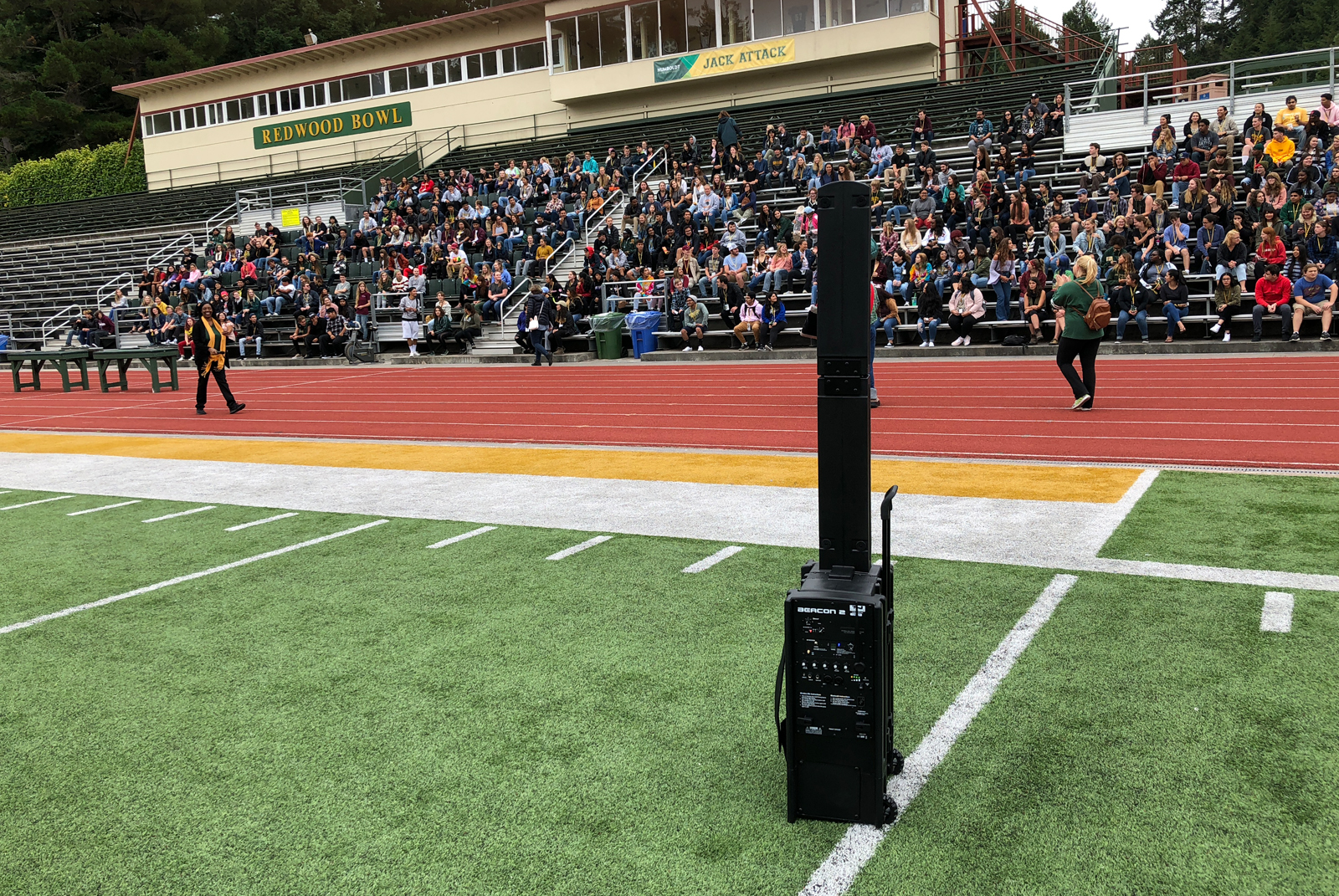

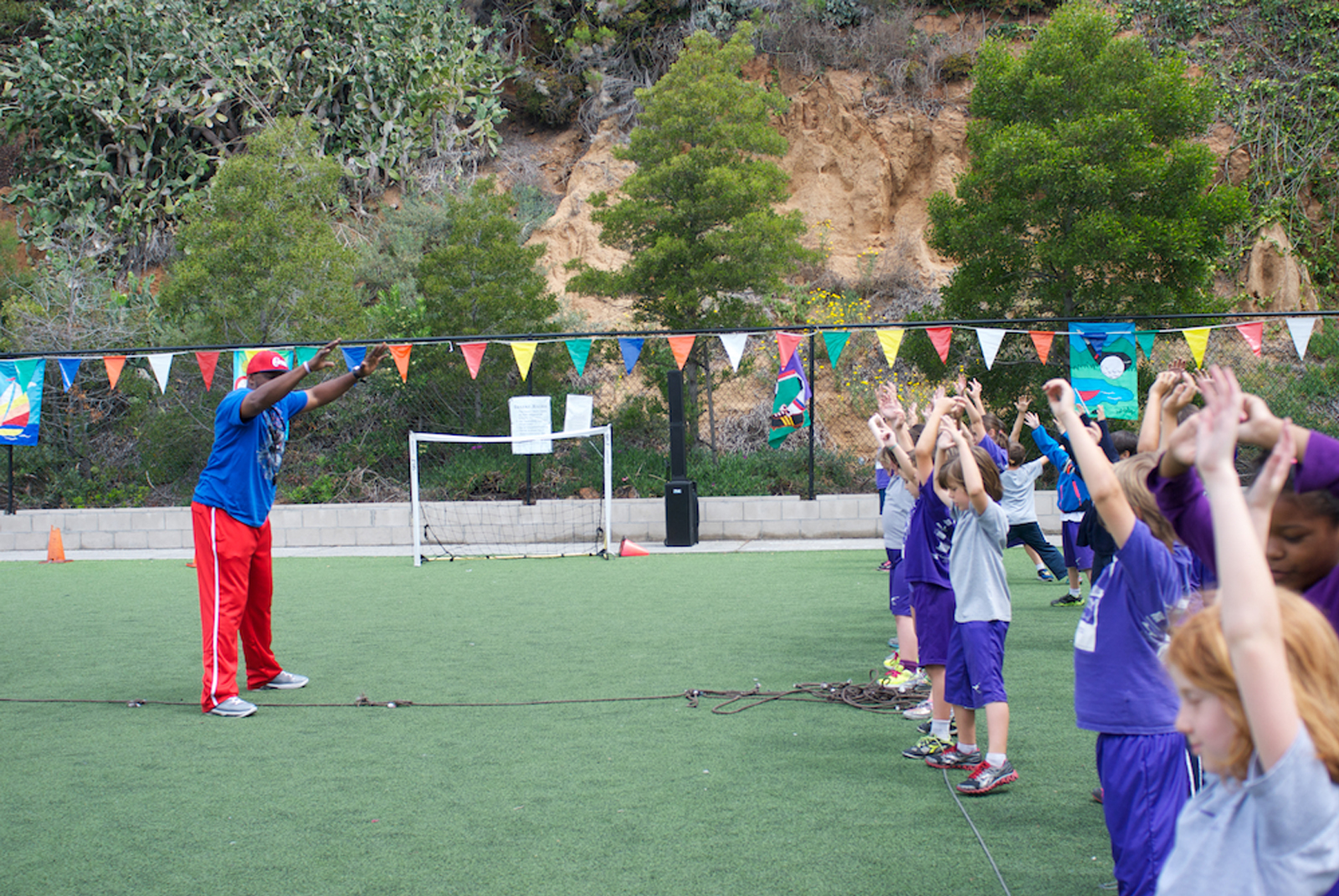

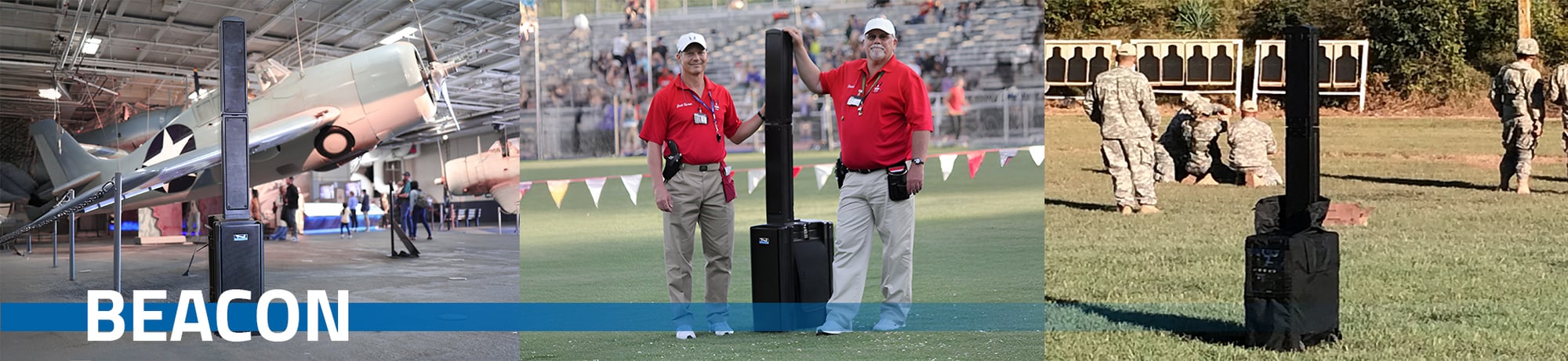

schools use anchor audio bigfoot for outdoor venues

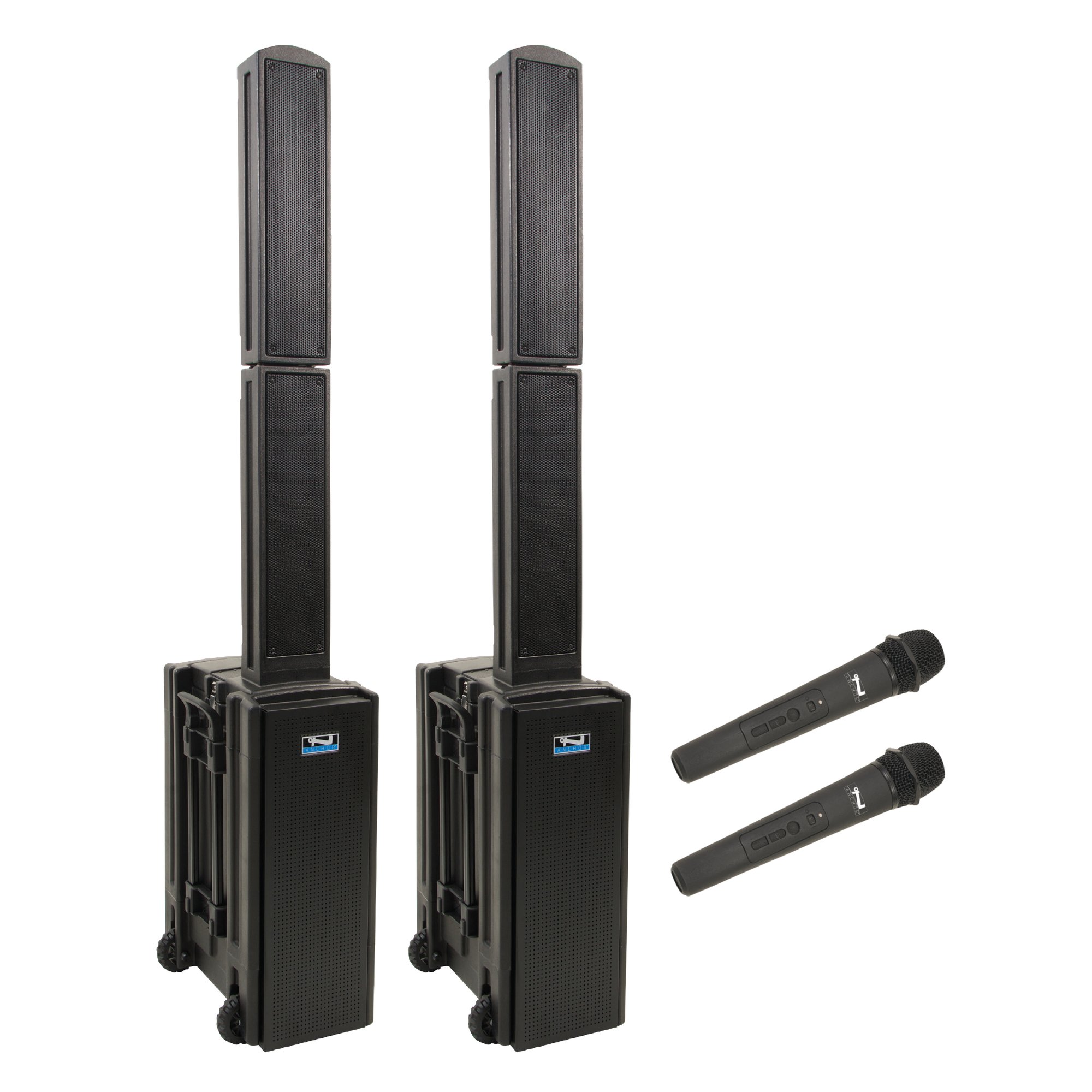

Beacon: Big Sound, Small Footprint

All Beacon systems include:

✅ Two built-in rechargeable lithium-ion batteries (7+ hours of playtime)

✅ Class 1 Bluetooth with 150' range so you can stream audio directly to your speaker

✅ Line array components that include eight 4” neodymium speakers in the tower, and three 8” neodymium subwoofers in the base

✅ Two balanced 1/4" XLR combo inputs for wired microphones, one 1/4" unbalanced Line In for mixers and instruments, one 1/4" Line Out for connecting companion speakers

✅ Lightweight rugged case designed to keep your electronics safe while transporting the system

✅ Durable handles and heavy-duty wheels

✅ Anchor Audio 6-4-2 Warranty

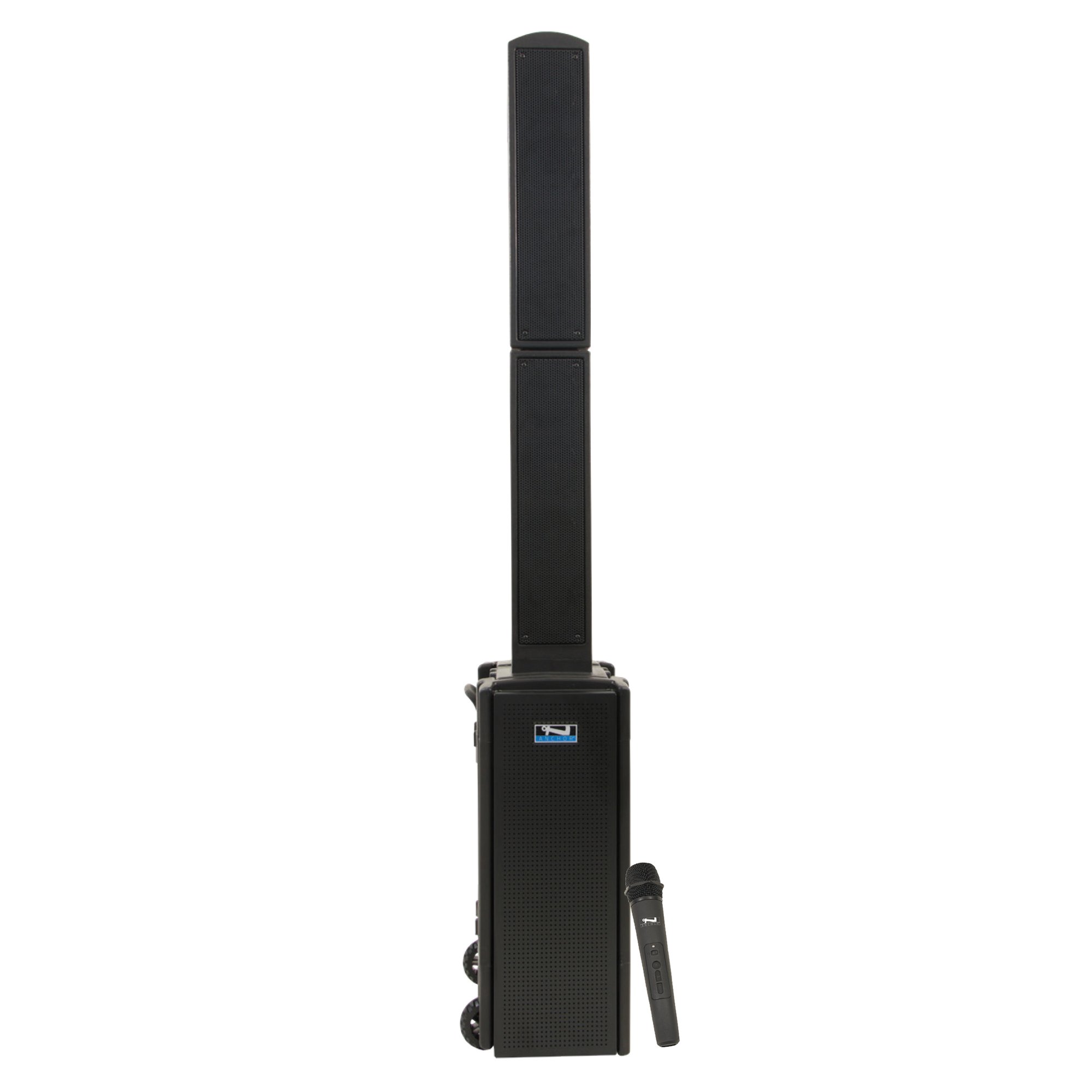

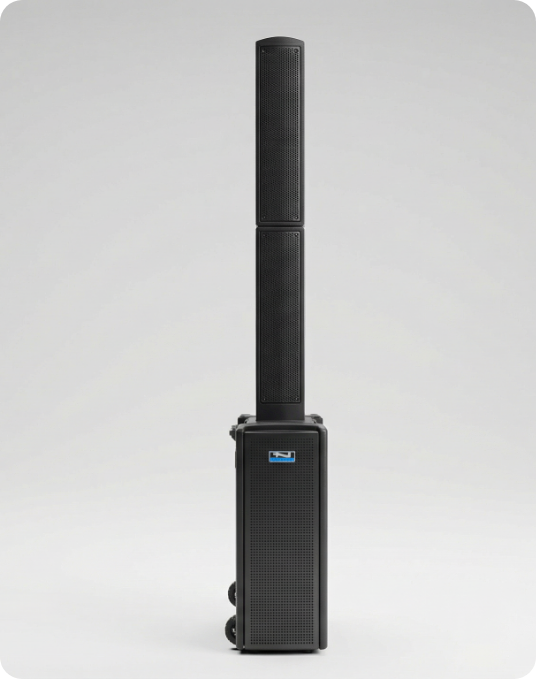

Each Beacon speaker:

Weight: 51 lbs
Dimensions: (Height x Width x Depth)

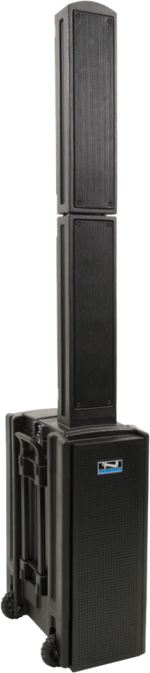

72” x 11” x 18.5” Opened

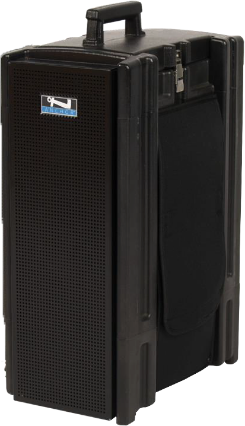

28” x 11” x 18.5” Closed
Coverage:
* area: approximately 75' x 150'
* crowd size: approximately 1500

Beacon speaker components include:

Eight 4” neodymium speakers in the tower, and
Three 8” neodymium subwoofers in the base

Technical Specifications

Rated Power Output: 150 watts
Max SPL @ Rated Power: 120 dB @ 1 meter
Frequency Response: 60 Hz ~ 15 kHz ± 3dB
AC Power Reqs:
100~240 VAC, 50/60 Hz, 2A
Charger/Power Inlet: PC-2
Battery
Two 12V Lithium Iron Phosphate (LiFePo4) rechargeable batteries, 7.5 Ah each
Full recharge: ~ 5 hours

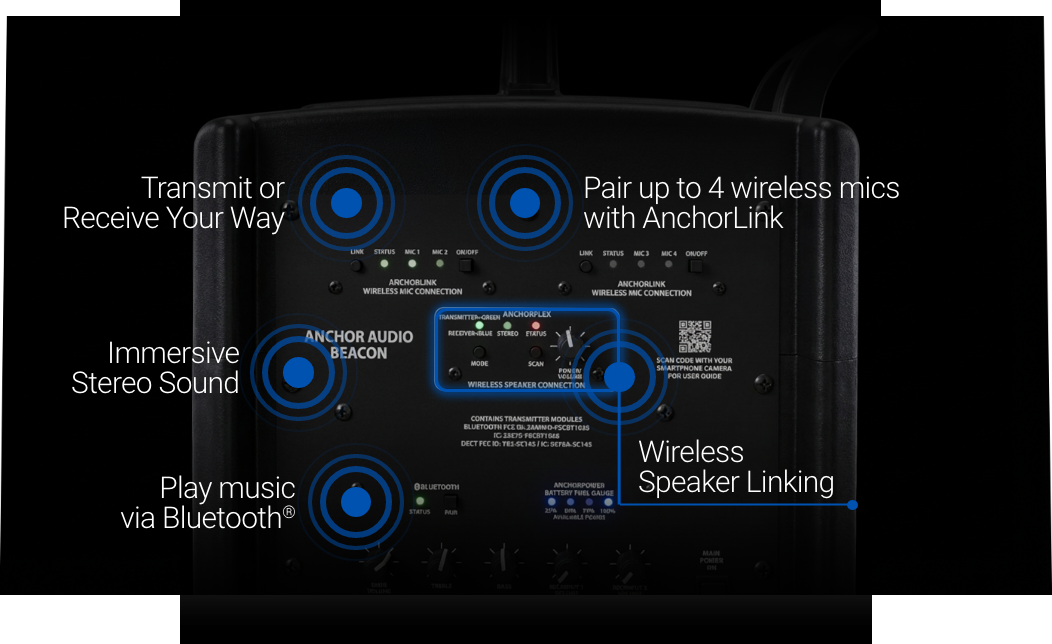

AnchorLink Wireless Frequency: 1920~1930 MHz USA/CAN
1880~1900 MHz Europe
AnchorLink Wireless Range: 300’+ line of sight
AnchorFlex Frequency Range:
902~928 MHz USA/CAN
606~614MHz Europe
AnchorFlex Wireless Range: 300’+ line of sight
Microphone Inputs:
* Lo-Z, balanced, XLR & 1/4”
* 34 V DC condenser mic (phantom) power
* Hi-Z (10 kΩ), unbalanced, 1/4” phone
Line Inputs:
* One unbalanced 1/4”
* One 3.5 mm stereo
Line Output (post fader): Isolated, 600Ω
One 1/4” phone
Speaker Out: 4-pole Neutrik Speakon® jack
